This equipment is dry quantitative gas-tightness equipment, and a service function for the cylinder head and intake and exhaust valve flap tightness testing of the functional channel. Device left work station to take place, the operator clamps the workpiece on the table positioning, press the hands start button, the device automatically after the workpiece clamping flap, lifted after the completion of the workpiece, this tool over potential pat on the head for replacement can LK15, ATV250, GN250, CBT125, four kinds of workpiece beat.

   Right-station equipment is to detect station, work began, the operator will be placed on the table workpiece positioning fixture, locate and press the start button with both hands, the device will automatically be detected each of the workpiece in order to block the channel and detects , after the device automatically detects the workpiece lifted manually remove the workpiece, the detection process and the status of the test results on the control panel, LED display for each channel through the test results. This station can also be replaced by the fixture can be on LK15, ATV250, GN250, CBT125 four kinds of artifacts were detected.

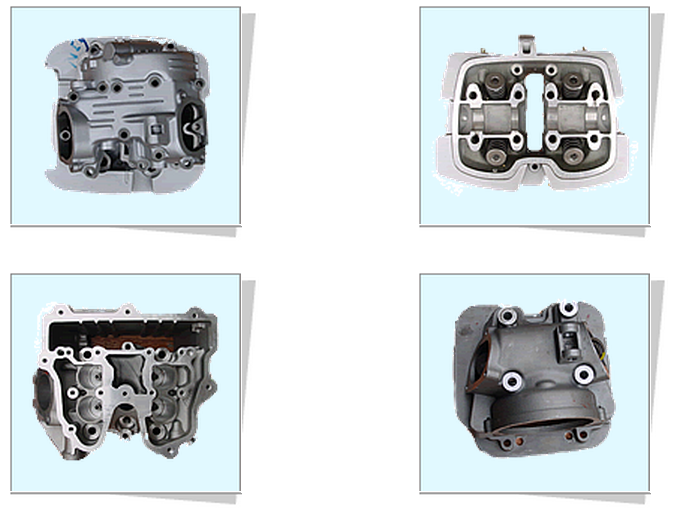

Workpiece
